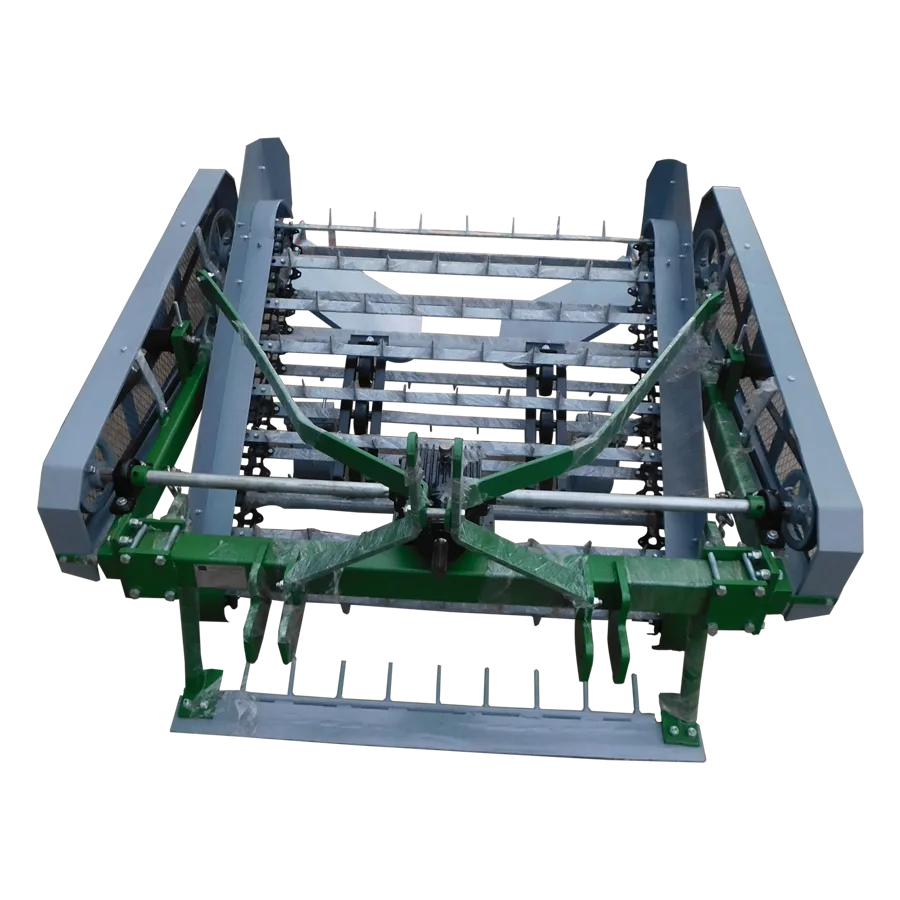

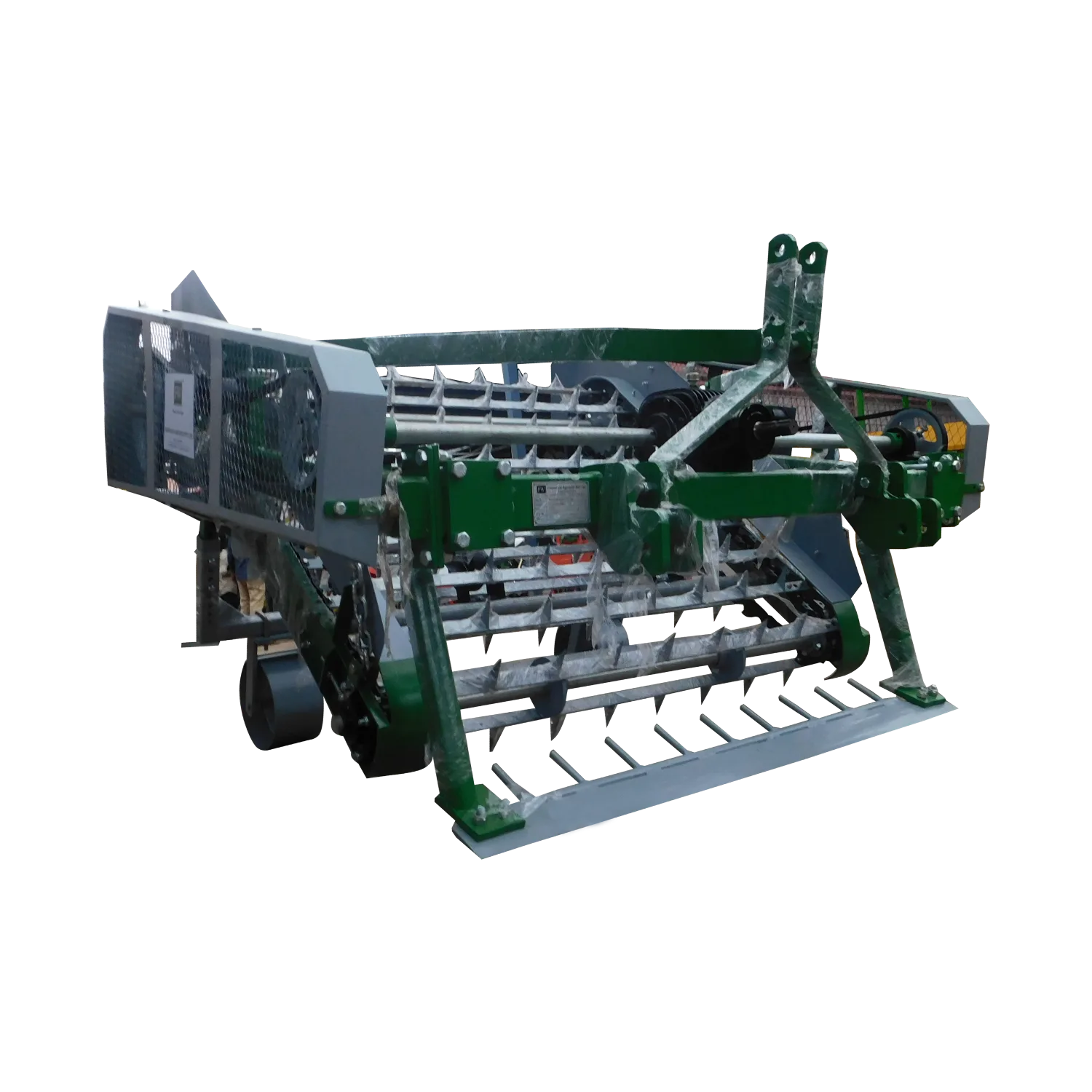

Groundnut Digger
Tractor Operated Groundnut Digger dig out and uproot the groundnut plant from soil with the help of harvesting blade. The uprooted groundnut pods are then lifted by an elevator conveyor belt which vibrates the groundnut to separate it from attached soil and left behind windrow of vines with pods to dry up in one operation and complete Groundnut Harvesting Process with No Loss of Seeds.
SPECIFICATION
| Model | FWGD |
| Dimension (Inch) | 60 x 100 x 55 |
| Frame | Welded, Tubular Steel Frame |
| Capacity | 3 Acre/Hour Or 4.8 Km/Hour |
| Gear Box | Heavy Duty – 540 RPM Standard (1000 RPM Optional) |
| Drive | Dual V Belt with Adjuster Idler,Chain Drive 20 – bar rattler bar Assembly |
| Windrowing attachment | Adjustable for Crop Condition,Designed for Clog-Free Operation |
| Working Depth | Adjustable with depth control wheels |
| Cutting Width (Inch) | 48/54/58/64/68/75 |
| Hitch Category | CAT II |
| Weight | 520 Kg |
| HP Requirement | 45 HP+ |
BENEFIT
- Easy to Operate and hassle free uprooting/digging of Groundnuts from soil.
- Organize the harvested groundnut in a row with the help of windrower.
- High quality harvesting reduce dependence on labor during short harvesting season.
- This easy operational machine is engineered for long term usage to provide high productivity and low operating costs.
